Sectors services management

Services basic management

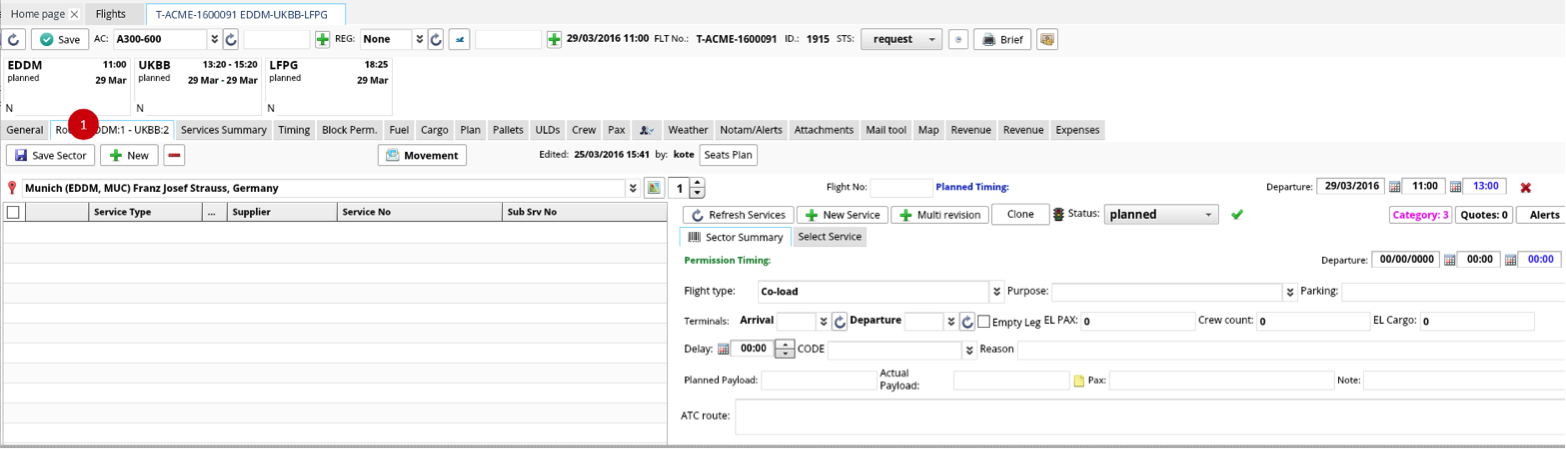

To manage services in flight, switch to Route tab


If there already some services created, they will be listed below.

To create new service, press New Service  2.png

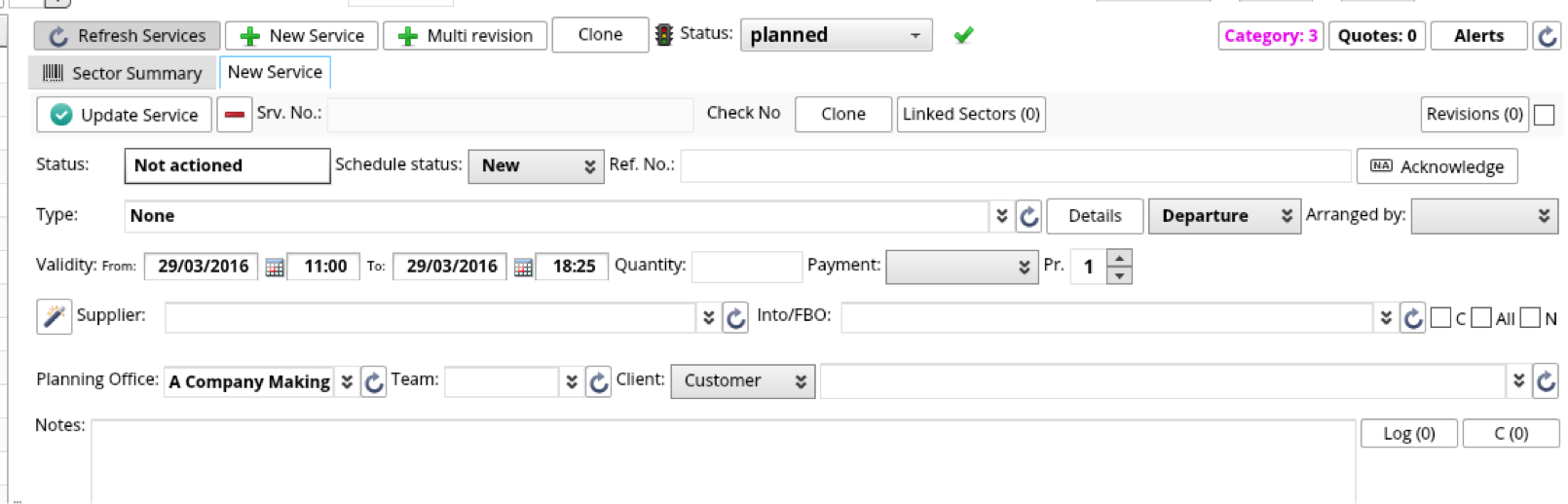

Fields may vary depending on service type and global settings for each customer

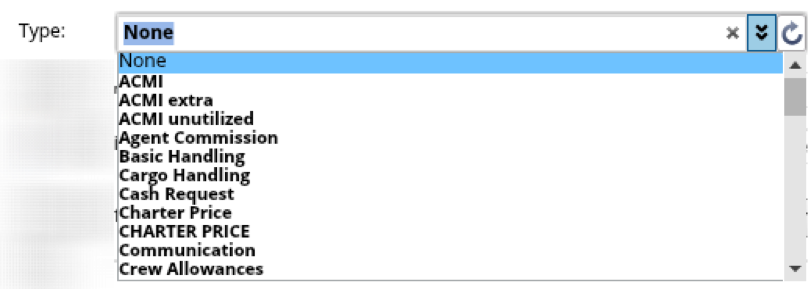

4.png Service type



5.png   01.png - Service number is generated automatically according to Customers’ requests



7.png Reference number is the number received from Supplier

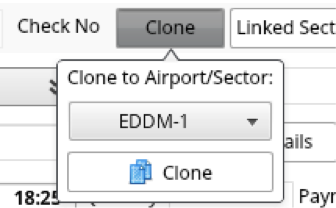

8.png If the same service is required for several waypoints, you can clone it. Choose waypoint from the list and press clone

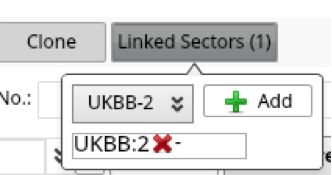

9.png  If one service corresponds to several waypoints, but needs to be with the same number, you can link it. Choose

waypoint and press Add

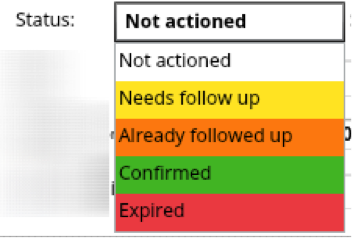

10.png Service status. Will be changed automatically due to changes of time, Reference number, Revisions.

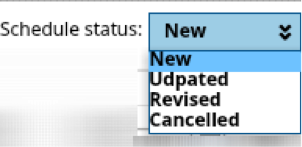

11.png Schedule status of service



12.png Press to acknowledge the service

13.png To choose if the service is required by arrival/departure/both



14.png To choose who is responsible for organizing service



15.png Insert the service validity



16.png - applicable for services with quantity. Might be digits or letters



17.png -  Entry – Exit points. *applicable for overfly permissions, Landing, Navigation etc

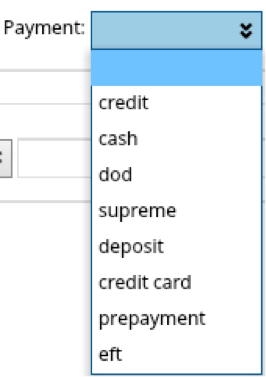

18.png Choosing way of payment for service

19.png Service priority

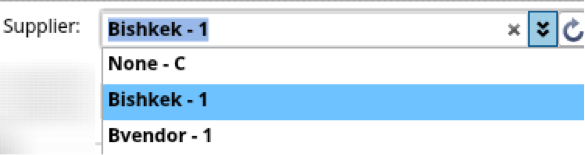

20.png Supplier of service



21.png Contact of supplier

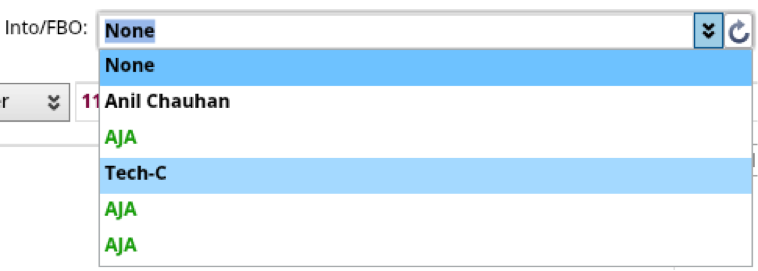

22.png The actual service provider



23.png Client, who requires the service

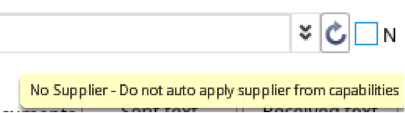

24.png If the tick is active, service do not require Supplier

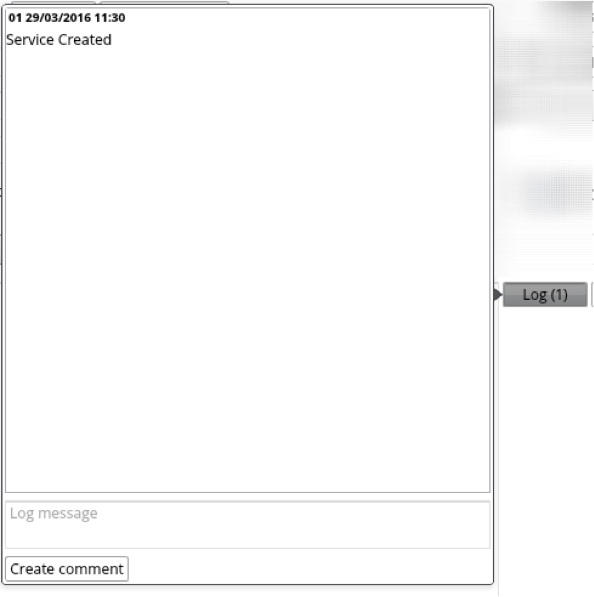

25.png Comments done by service agents

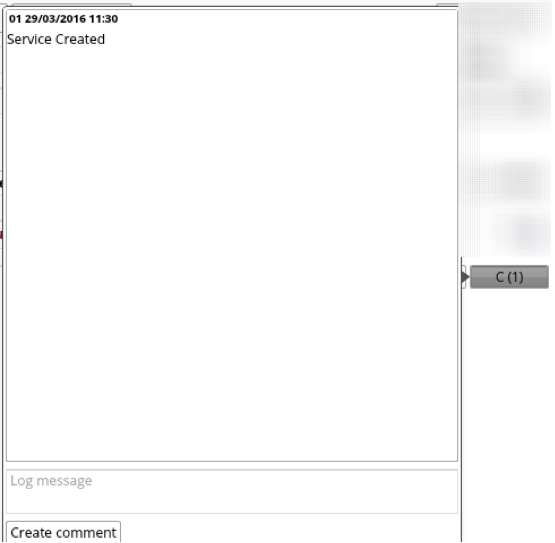

26.png Comments done by Customer

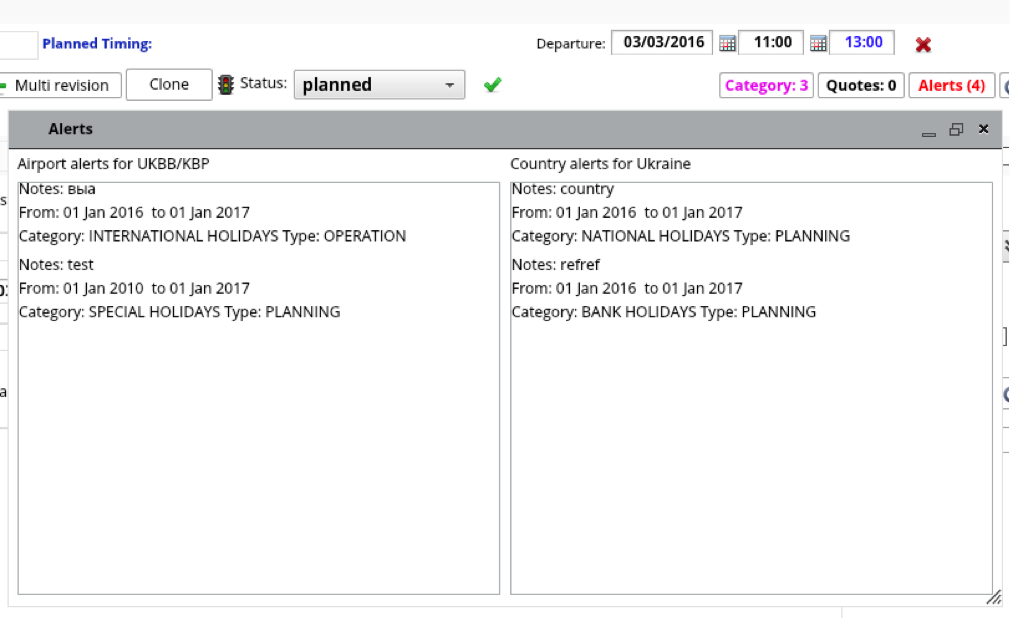

27.png Alerts for  Country/Airport

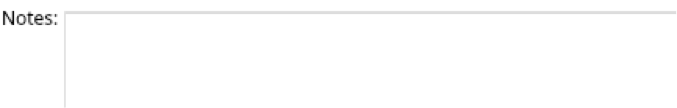

28.png Notes for service



29.png - *applicable for Fuel services. Fuel rates to be chosen and applied

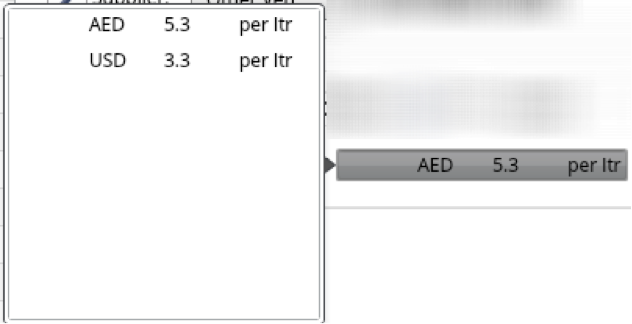

30.png List of available Fuel rates



31.png 32.png Services Creator/Editor



33.png Sending emails from system using customized

templates 34.png



 - *applicable for some services. Adding aircraft documents to the email



35.png - Showing sent & received text



After the data is filled in, press  36.png

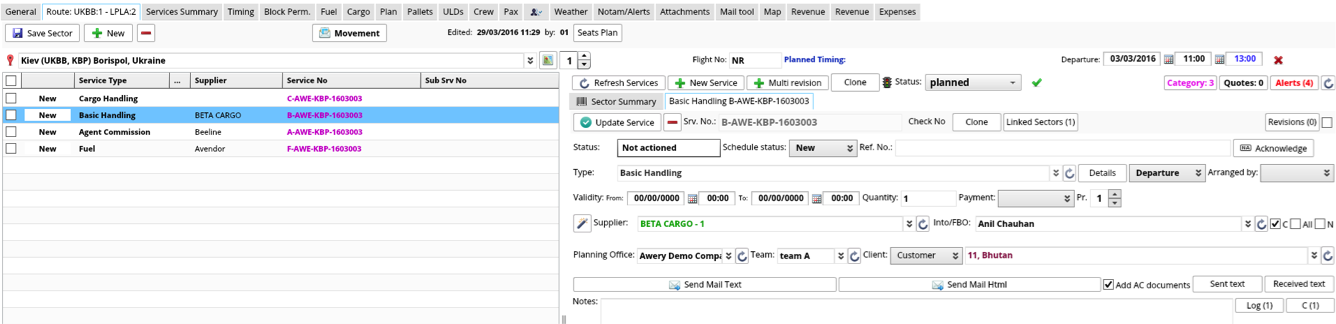

The list of services for this waypoint will be on the right side

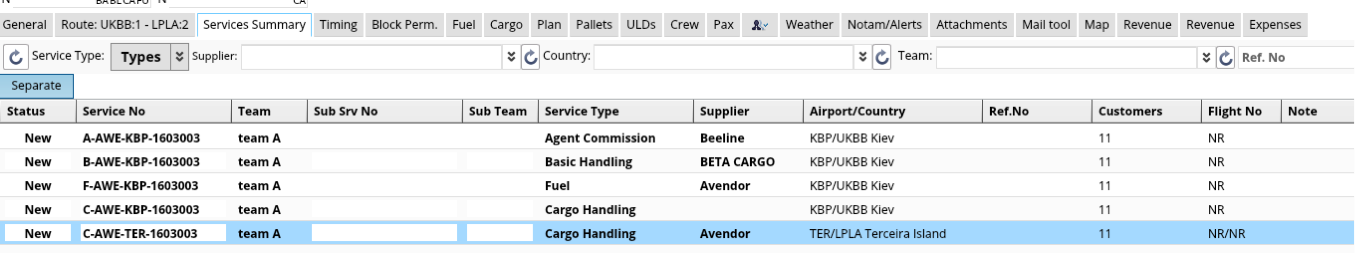

The list of all services for flight will be on the tab Services Summary
