Sector Purposes

Accessing Sector Purposes

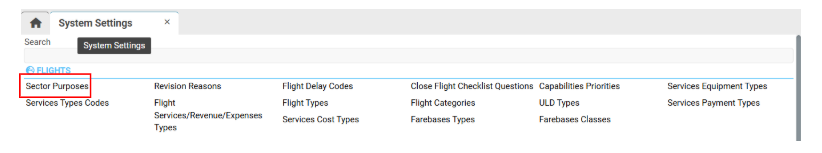

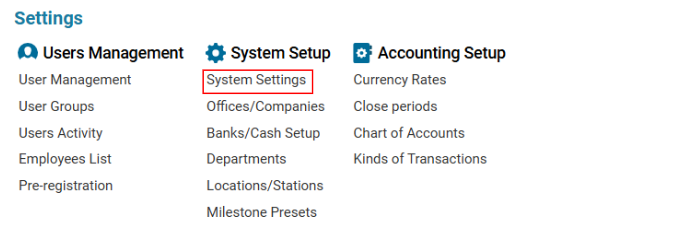

Navigate to the Settings section and under the System Setup Section click the “System Settings” Button. Then under the Flights Section click the “Sector Purposes" button.


Overview

The Sector Purposes feature allows users to define specific goals for flight sectors. This helps streamline flight creation by enabling users to select predefined purposes instead of manually entering data.

Users can:

  • Add new flight purposes.

  • Edit existing purposes.

  • Delete unnecessary purposes.

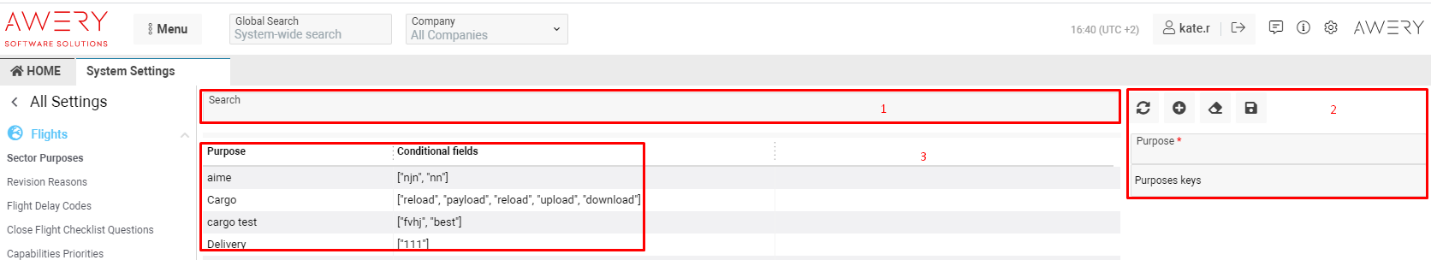

List Description

The Sector Purposes interface consists of:

  1. Search Bar – Allows filtering entries based on purpose and conditional field parameters.

  2. Editor Panel – Contains buttons and fields to add, edit, and delete sector purposes.

  3. Existing Purposes Table – Displays sector purposes with the following columns:

    • Purpose – The goal of the flight.

    • Conditional Fields – Additional information about the flight purpose.

Managing Sector Purposes

Creating a New Sector Purpose

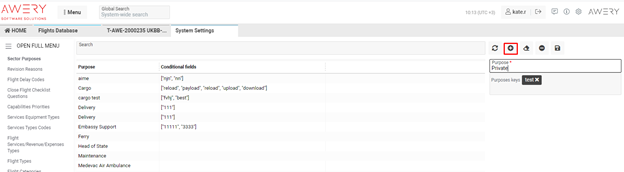

  1. Click the +NEW button.

  2. Enter details in the required fields:

    • Purpose (mandatory) – Define the goal of the flight.

    • Purpose Keys (optional) – Used by external system products (e.g., service portals).

A screenshot of a computer  AI-generated content may be incorrect.

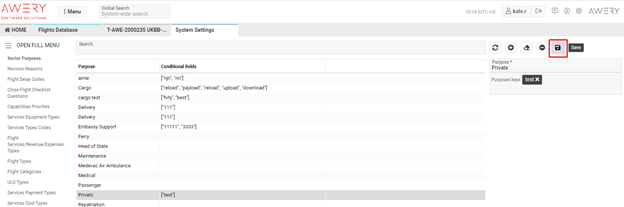

  1. Click Save to confirm.

  2. The page will update automatically, and the new purpose will appear in the list.

A screenshot of a computer  AI-generated content may be incorrect.

Editing an Existing Sector Purpose

  1. Select a purpose from the list.

  2. The edit area updates automatically with the selected purpose.

  3. Modify the necessary fields.

  4. Click Save to apply changes.

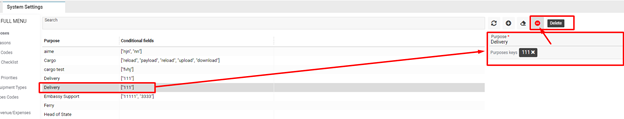

Deleting a Sector Purpose

  1. Select a purpose from the list.

  2. The edit area updates automatically, and the Delete button becomes visible.

  3. Click Delete to remove the selected purpose.

A graph showing a red line  AI-generated content may be incorrect.

Using Sector Purposes in Flight Creation

  • Users can select a Sector Purpose while creating or editing a flight.
