Flights Cargo

Home→  Flights→ Flights→  Flights Cargo

Overview

This interface allows you to look through the information about cargo flights and see the details about payload, pieces, volume, etc.

There is an opportunity to review the deleted flights, change statuses of Revenue/Expenses, make different filtration.

List description

• Status – the flight’s condition
• Flight ID – the internal flight number, which can be set according to different rules.
• Airline/Operator – the company who carries out the flight
• Type – the aircraft type
• Origin – the point code of departure
• Dest – the point code of arrival
• Route – the path of flight
• Dep. Date – the date and time of departure
• Arr. Date – the date and time of arrival
• Dep. Date Local – the local date and time of departure
• Arr. Date Local – the local date and time of arrival
• Company – the flight’s office
• Reg. No. – the registration number of the aircraft
• REV– the ticks are shown according to the selected operation with revenue on the “General” tab
  • The double tick is shown in case the revenue is closed
  • The one tick is shown in case the revenue is notified
  • The empty cell is shown in case the revenue is unnotified

• EXP – the ticks are shown according to the selected operation with expenses on the “General” tab
  • The double tick is shown in case the expense is closed
  • The one tick is shown in case the expense is notified
  • The empty cell is shown in case the expense is unnotified
• Files - the clip



  is shown in case there are attachments.

Manuals

How to open the details of the necessary flight

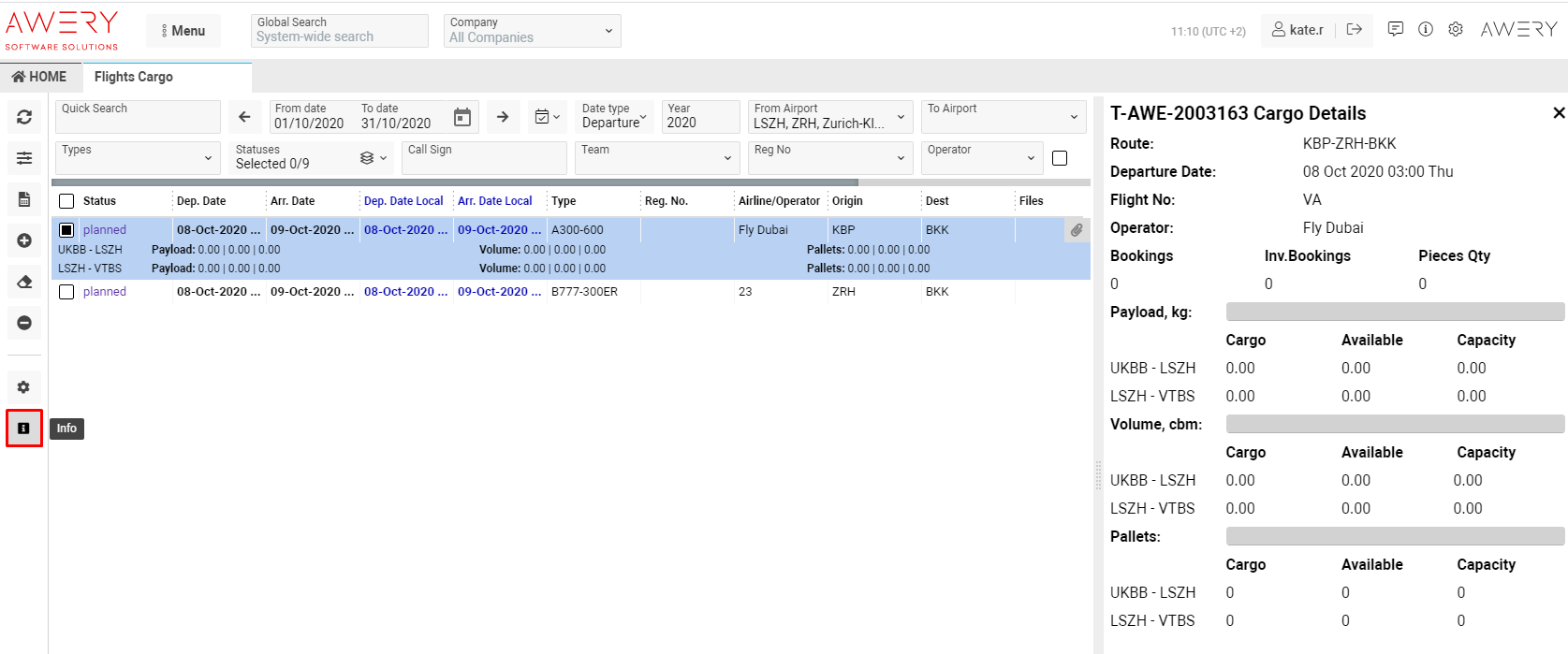

Click the Info button to see the details of the selected flight

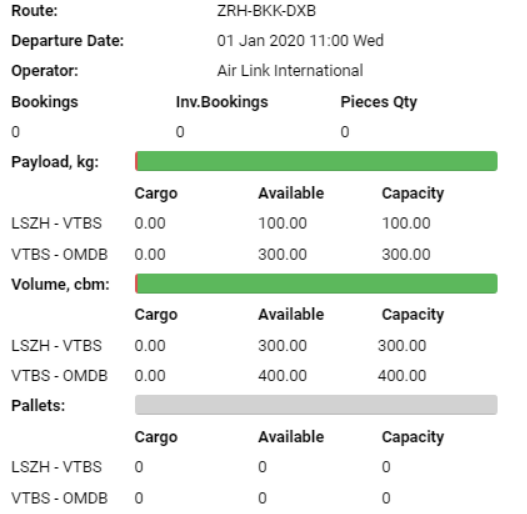

The elements of the sidebar:

• Route – the path of the flight
• Department Date – the start date of the flight
• Flight No – the call sign of the flight
• Operator - the company who carries out the flight
• Bookings – the amount of the linked AWB
• Inv. Bookings – the amount of bookings that has linked jobs
• Piece Qty – the quantity of pieces
• Details about Payload, Volume and Pallets according to each sector (quantity and percentage of capacity)

How to change the selected period

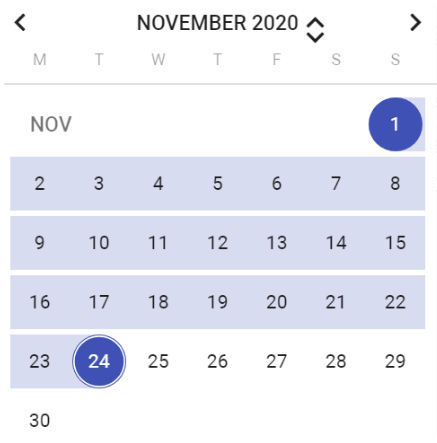

• In case you need to change the period, click on the icon of the calendar

• At first select the start date, clicking on it
• Then select the end date, clicking on it

The selected period will be highlighted.

Sorting and filtering

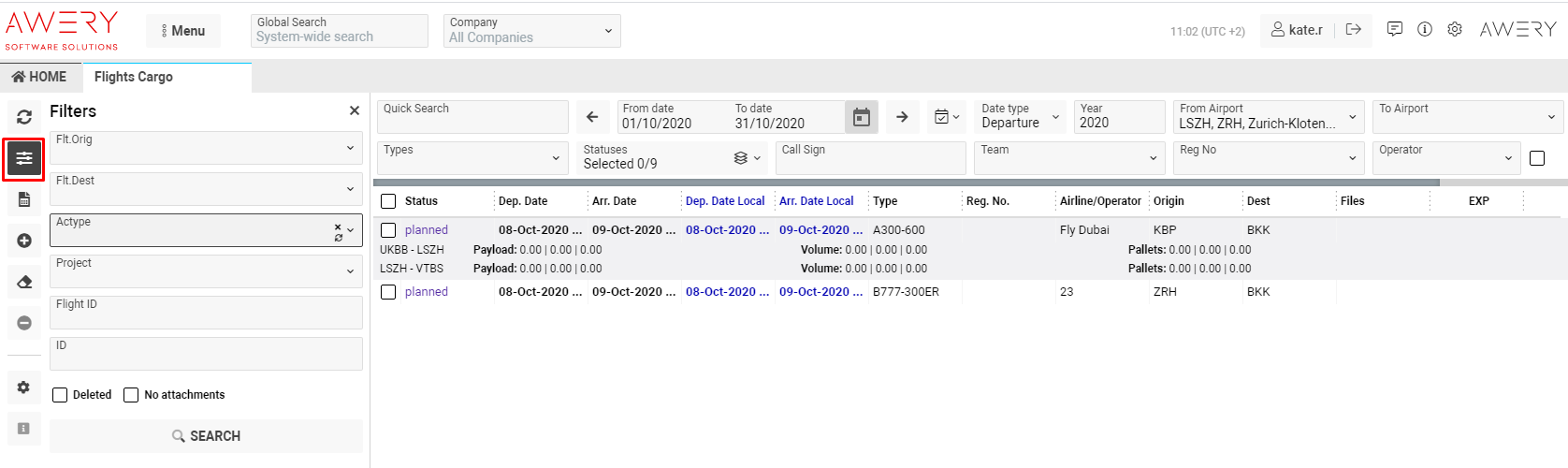

• Click the “Filters” button and select the appropriate parameters to get a more exact result

• You have an opportunity to filtering data by origin, destination, actype, project, flight ID and ID fields. Select the necessary variant from the dropdown lists or fill in the field manually and click the “Search” button.

• You have an opportunity to change the status of the revenue/expenses quicker

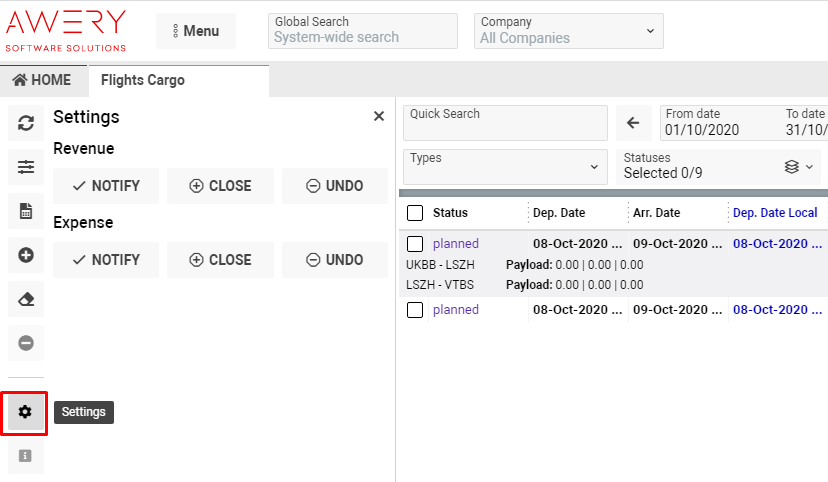

• click the “Settings” button
• select the necessary entry with the help of tick
• click on the status

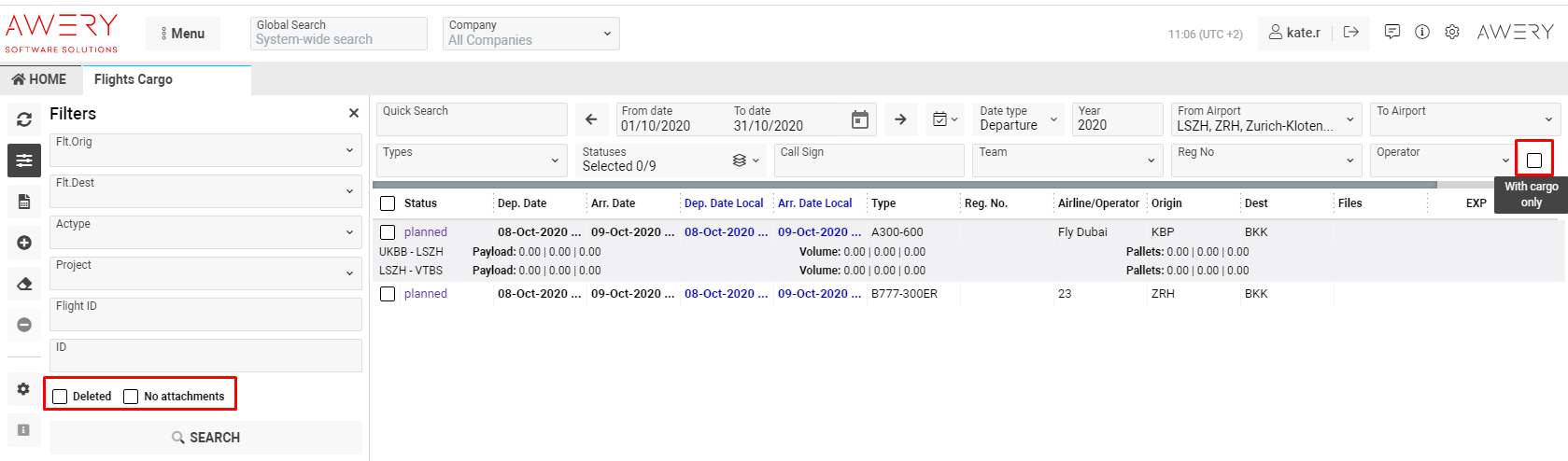

• To look through the deleted flights, make a tick in the “Deleted” checkbox

• In case you need to sort flights with attachments, make a tick in the “No attachments” checkbox.

• Making the tick in the “With cargo only” checkbox, you will see flights with linked AWB

• Making the filtration by the “Quick Search” field, you can find the information you need quicker.  Columns for which the search is available: Status, Flight ID, Airline/Operator, Type, Origin, Dest, Route, Reg. No.

Permisions
