Aircraft Document Types

Document Types

Accessing Document Types

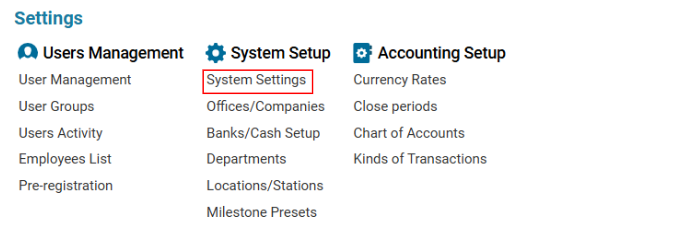

Navigate to the Settings section and under the System Setup Section click the “System Settings” Button. Then under the Aircrafts Section click the “Document Types" button.

Overview

The Document Types interface allows users to:

• View a list of aircraft-related document types.

• Add new document types required for aircraft operations.

• Edit and update existing document details.

• Delete outdated or unnecessary document types.

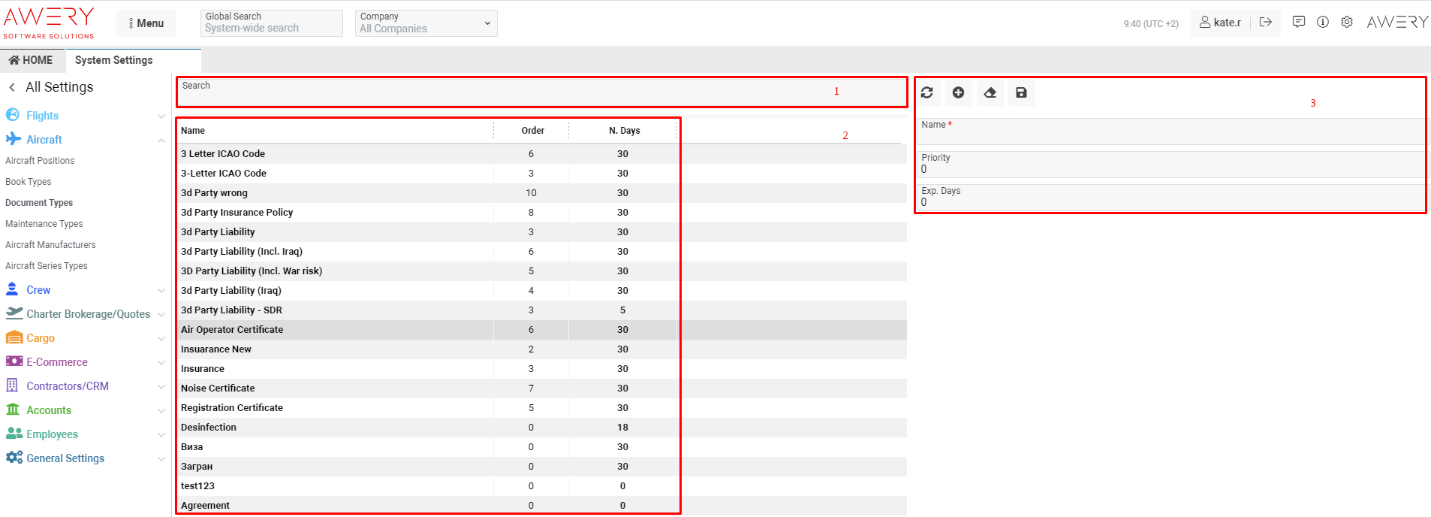

Main Functionalities

1. Search Functionality

• Find items by Name, Order (Priority), or Validity Period (N. Days).

2. Data Table

Displays the following columns:

• Name → Document name.

• Order → Defines priority in the list for further system use.

• N. Days → Validity period (in days) of the document.

3. Editor Panel

• Used for adding, editing, and deleting document types.

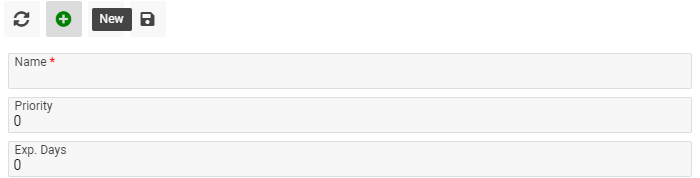

Adding a New Document Type

1. Click the New button in the Editor panel.

2. Fill in the required details:

   • Name: Mandatory field (Enter document name).

   • Prior: Integer value defining priority order.

   • Exp. Days: Validity period (Enter manually or use count function).

3. Click Save to confirm.

Editing an Existing Document Type

1. Select the document from the list.

2. The Editor panel will display the selected entry.

3. Make necessary changes and click Save.

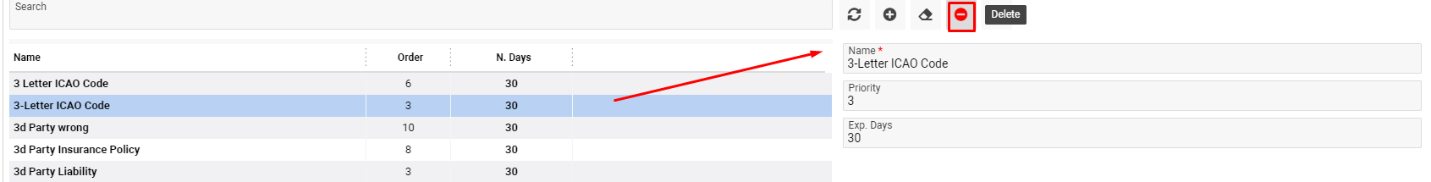

Deleting a Document Type

1. Select the document from the list.

2. Click the Delete button in the Editor panel.

3. Confirm deletion in the dialog box.
